$559.00 USD

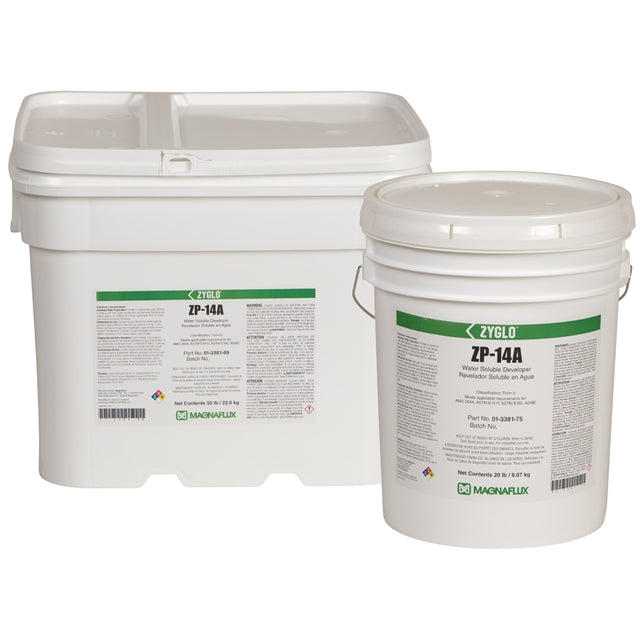

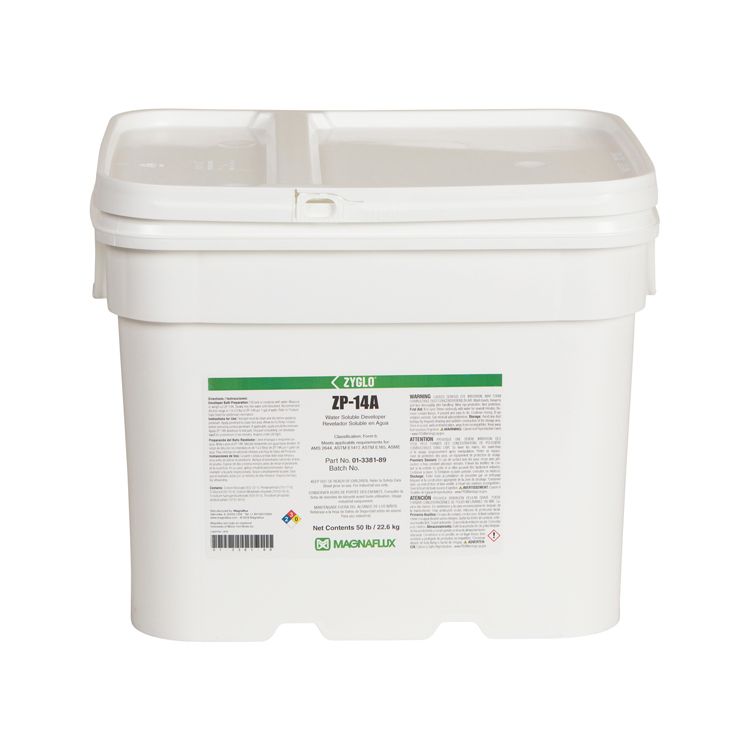

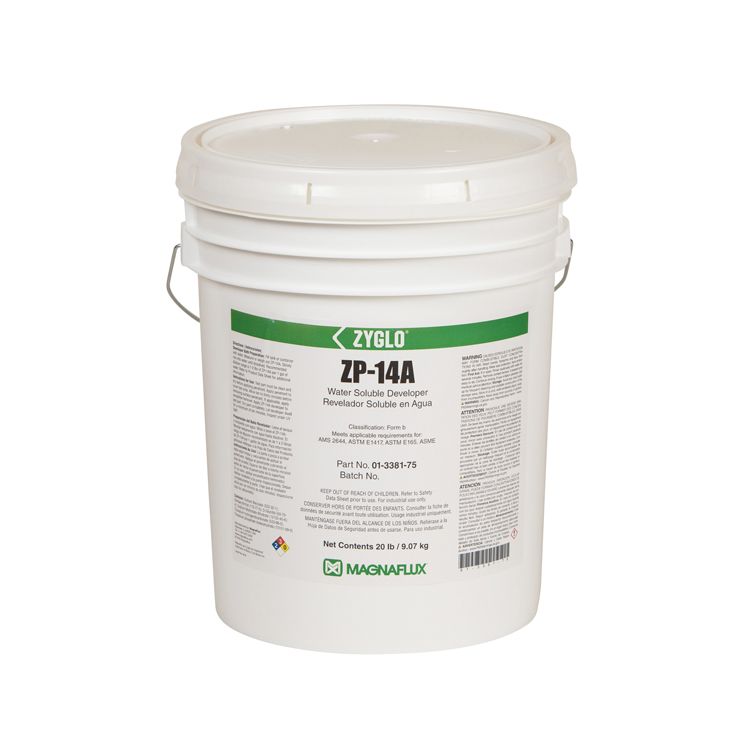

ZP-14A is a water-soluble developer for enhancing penetrant indications during liquid penetrant inspections. It produces a uniform white porous coating when dry which is easily removed in post-inspection cleaning by a water spray. Advantages include bright and highly defined indications and can be cleaned with water.

This white free-flowing powder dissolves in water to form a developer solution and does not require agitation once the developer bath is prepared. ZP-14A is recommended for use with Level 2 ZL-2C, Level 3 ZL-27A and Level 4 ZL-37 post-emulsifiable penetrants.

ZP-14A is listed on the QPL SAE AMS 2644 Qualified Product List.

Benefits

  • Bright, highly-defined indications
  • Can be cleaned off with water
  • Even, uniform coverage
  • QPL SAE AMS 2644 Qualified Product List

Specifications

  • AECL
  • AMS 2644
  • AMS 2647
  • ASME
  • ASTM E1417
  • ASTM E165
  • Boeing BAC 5423 PSD 6-46 or 8-4
  • GE P3TF2
  • MIL-STD-2132
  • MIL-STD-271
  • QPL SAE AMS 2644

Applications

Defect location: open to surface

Ideal for:

  • Castings
  • Forgings
  • Machined components

Defect examples:

  • Cracks
  • Porosity

Use Recommendations

NDT Method: Penetrant Testing

Types: Type 1 and Type 2

Form: Form b

Temperature Range: 40 to 120°F / 4 to 48°C
