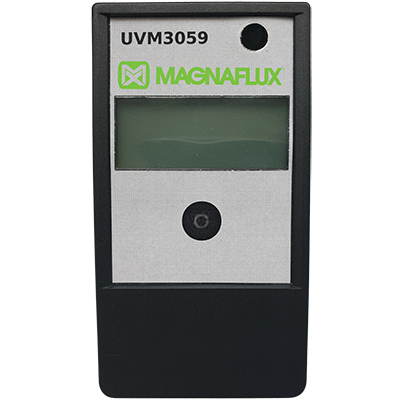

The UVM3059 is designed for measuring ultraviolet radiation, primarily for use in non-destructive material testing. It was developed according to the specifications of ISO 3059. The housing is dust and splash-proof according to protection class IP54. The optical sensor is integrated into the surface of the meter.
PRODUCT PROPERTIES
Display |
backlit digital graphic display, 160 x 64 p |
Power supply |
9V block battery (PP3, 6LR61) |
Current consumption |
max. 16mA |
Battery life |
approx. 50 hours measuring time (at medium display brightness) |
Automatic switch-off |
after 5 minutes |
Measuring range |
0.5 - 100 W/m², 50 - 10,000 µW/cm², 0.05 - 10 mW/cm² (each range individually selectable) |
Light sensitivity |
UV-A radiation with 365 nm wavelength (see chart below) |
Languages | Operator’s menu available in English, German, and French |
Dimensions | 120 x 65 x 22 mm (in its plastic housing) |
