$2,340.00 USD

EV6000 Hand-Held LED UV Lamp

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

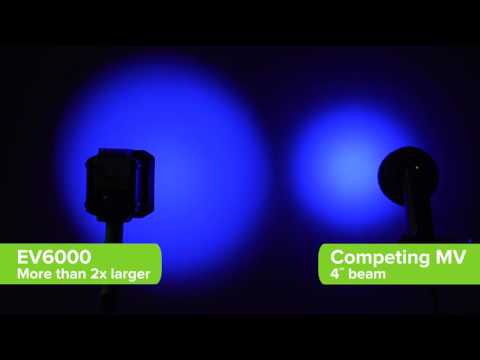

The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.

Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.

The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

Benefits

Minimizes time to inspect parts

  • Speeds up inspection time with one of the widest, most even beams on the market
  • Indications are clearly visible even at the edge of the 9 inch / 23 cm beam, thanks to the high-intensity LEDs

Maximize range of inspections

Increases real-world reliability

  • Reduces on-the-job downtime with dependable, reinforced construction
  • Fully sealed IP65 rated housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections

Features

  • 5,000 μW/cm2 maximum irradiance at 15 in / 38 cm
  • 9 in / 23 cm wide, uniform circular beam

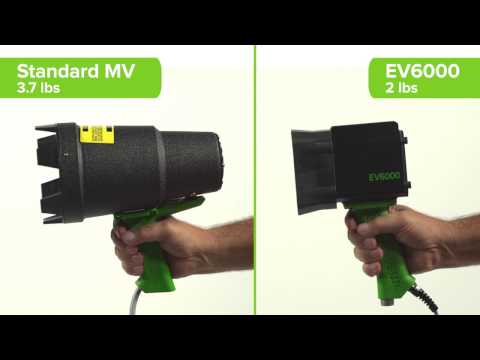

  • Lightweight at only 2 lb / 0.9 kg
  • No hot-spots in the beam profile
  • IP65 rated, rugged, durable design
  • No internal fan
  • Low energy consumption
  • Aerospace prime and OEM certified
  • Improved operator and environmental safety
  • Certified to ASTM / RRES / NADCAP
