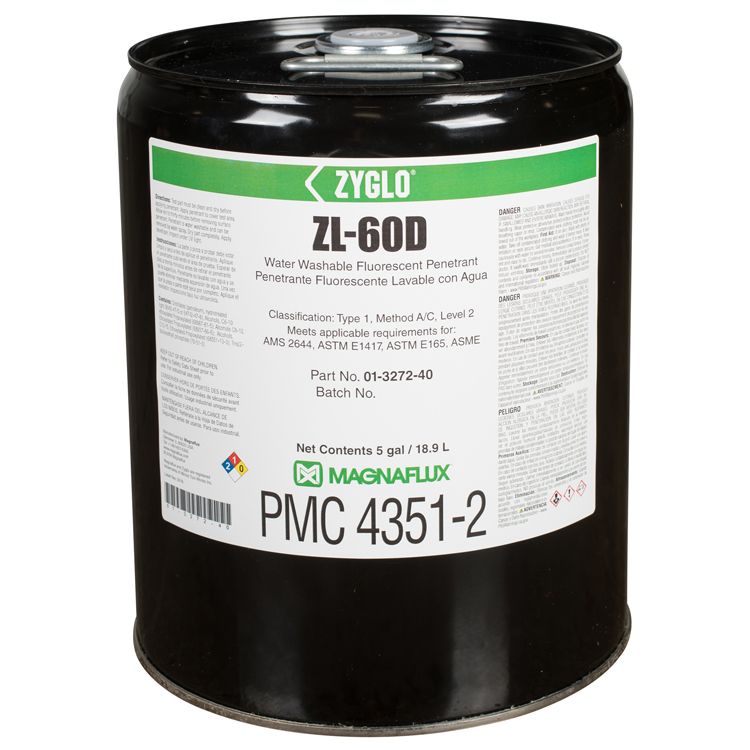

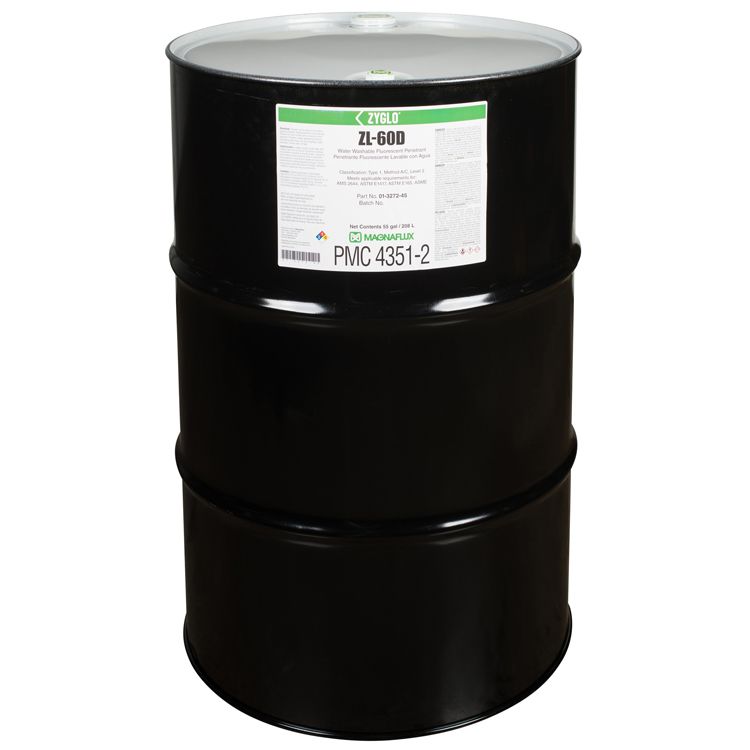

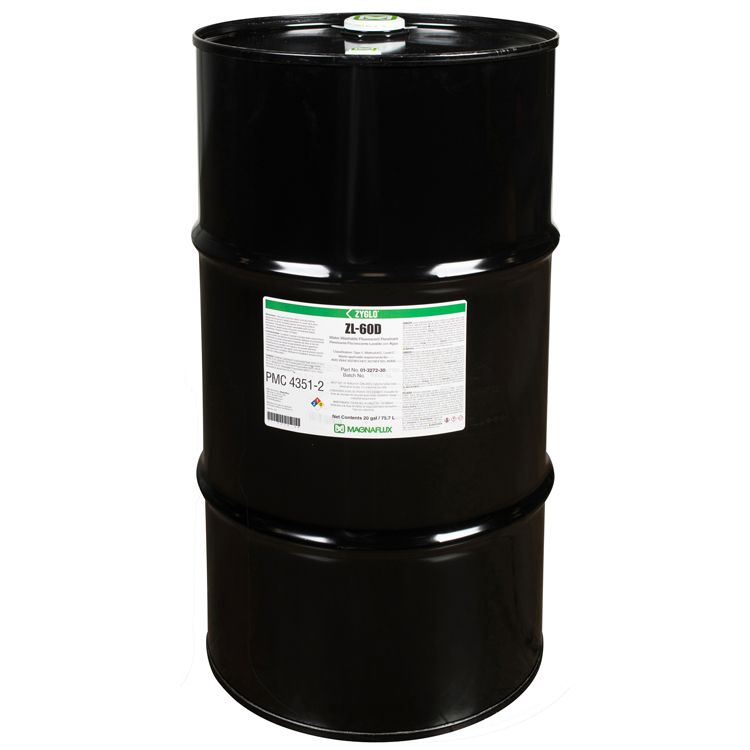

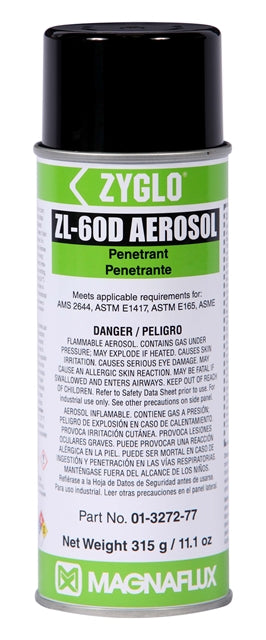

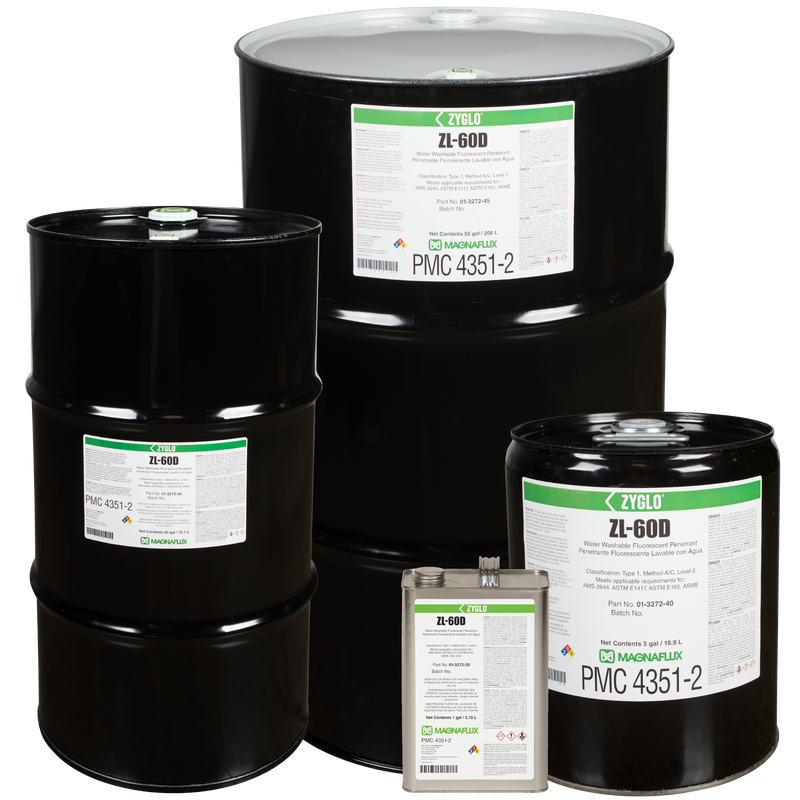

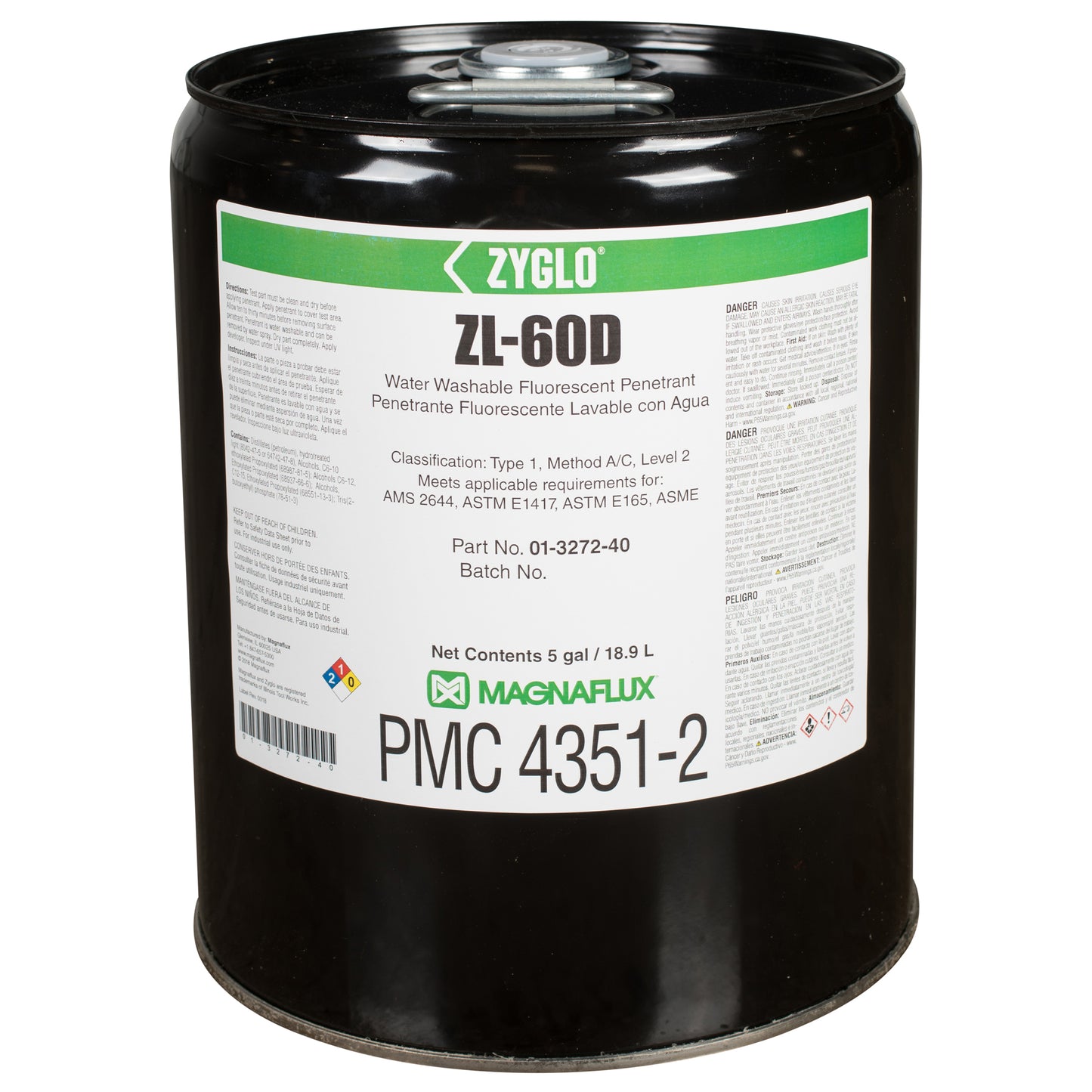

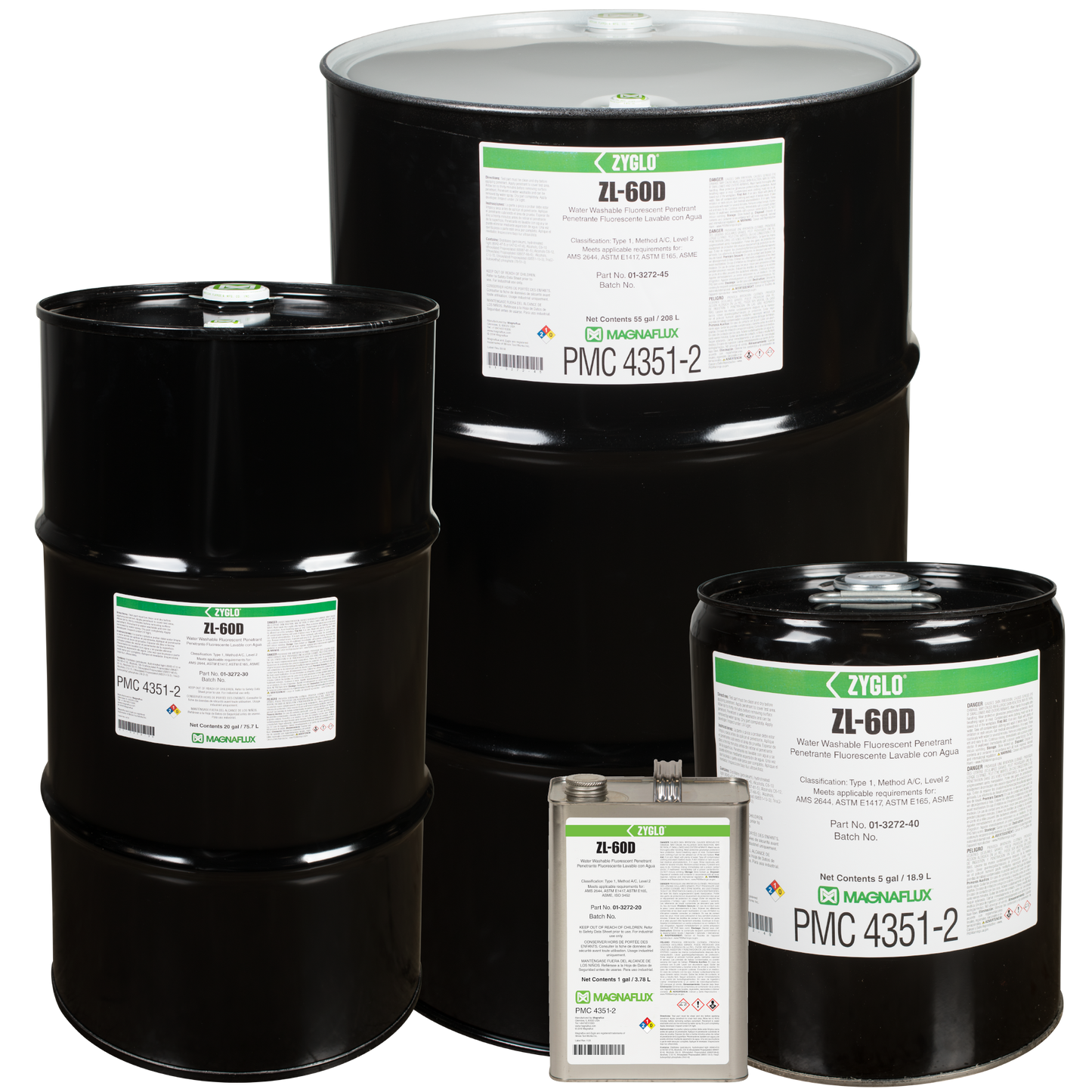

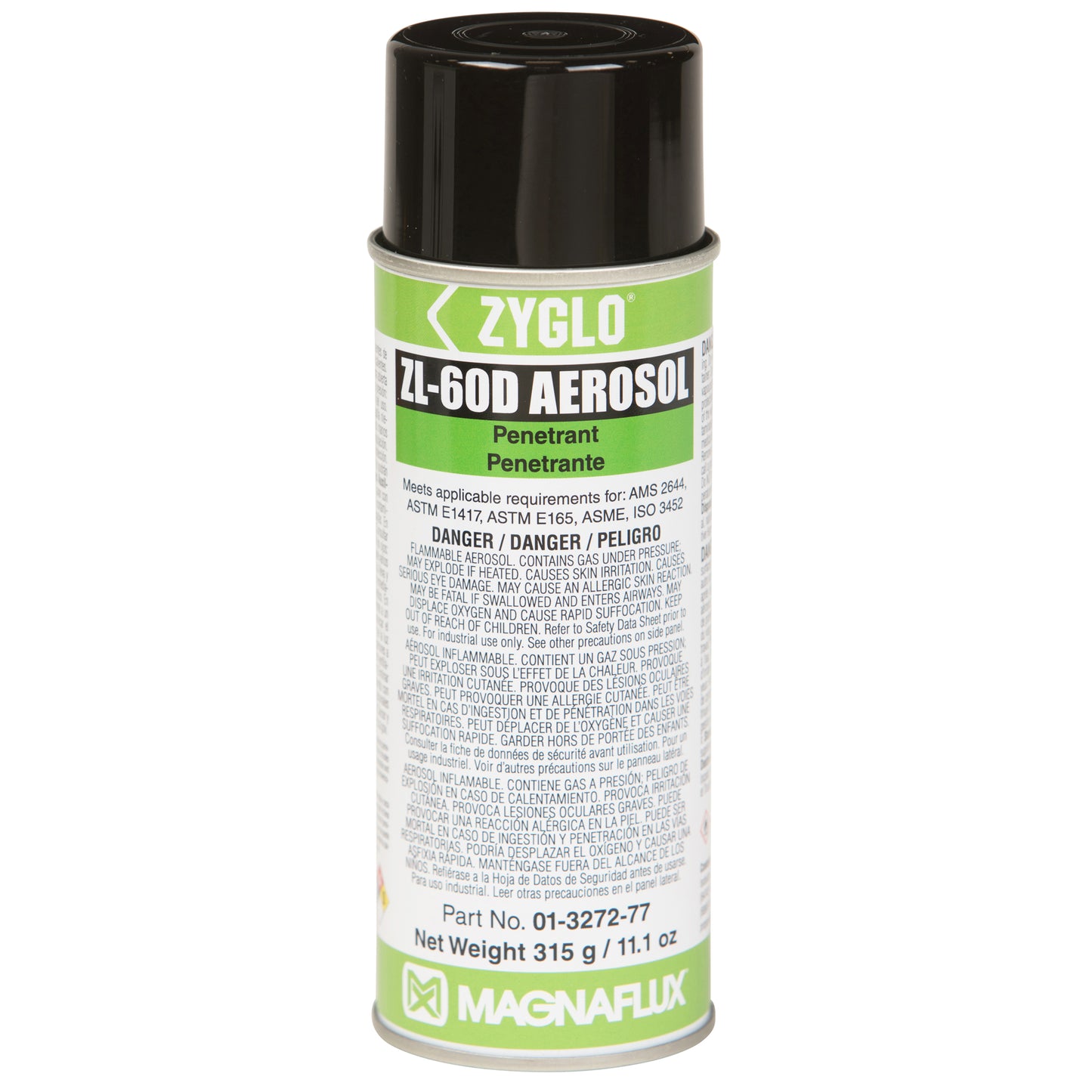

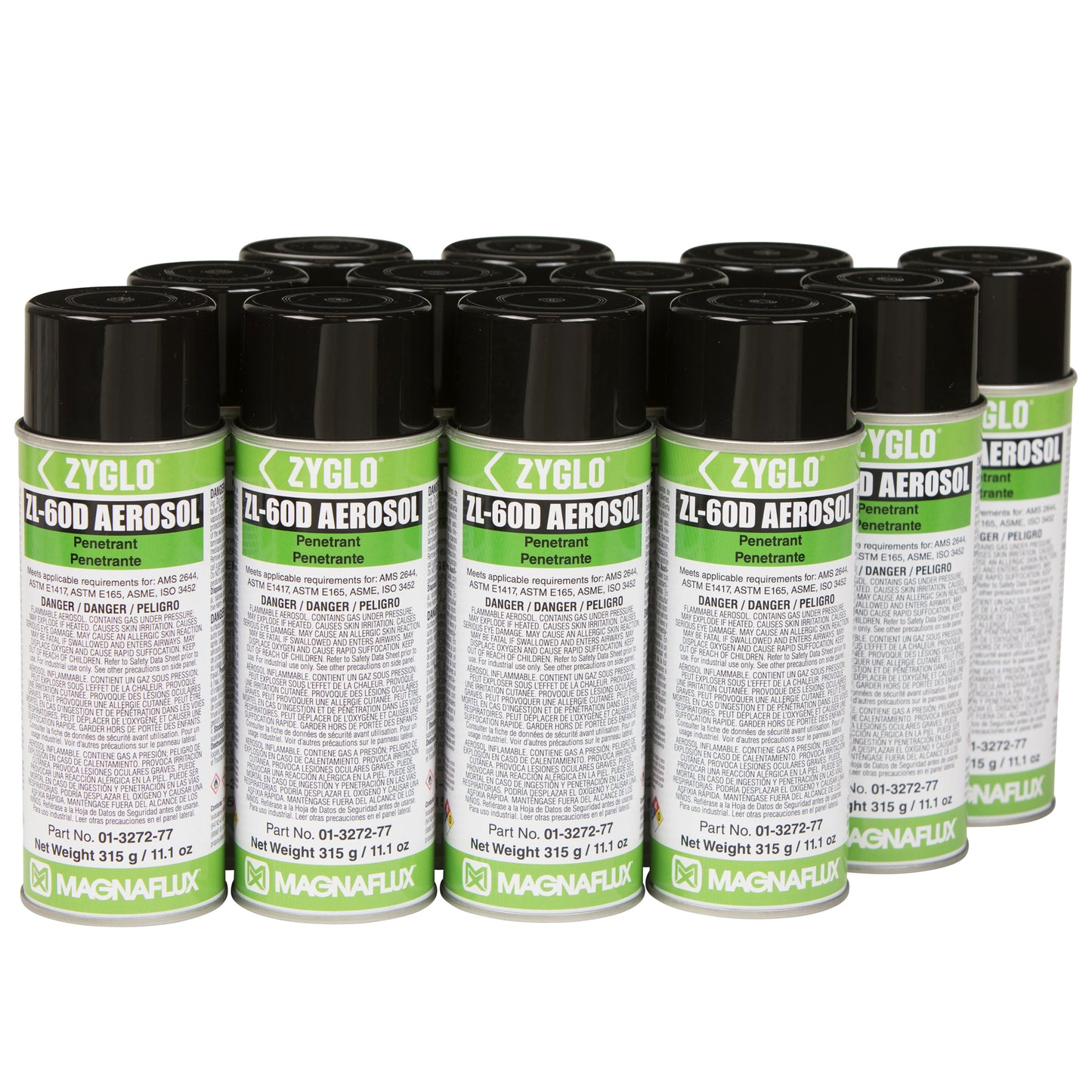

Magnaflux ZL-60D Level 2 Water Washable Fluorescent Penetrant
Developed for testing rough machined surfaces, ZL-60D fluorescent water-removable penetrant is ideal for finding indications in castings, forgings, extrusions, and rough surfaces.
This medium-sensitivity penetrant washes off parts quickly and easily, leaving less fluorescent background – even on rough surfaces – for clearer indications and better inspection reliability.
ZL-60D is one of the most versatile “work-horse” penetrants, customers can use this one penetrant for a wide range of applications on a range of parts to find many different types of defects, including cracks, seams, laps, cold shuts, laminations, and porosity.
Broad specification compliance further increases this penetrant's flexibility. ZL-60D has excellent alloy compatibility and is safe to use on most engineering and aerospace materials, including aluminum, steel, nickel, and titanium.
ZL-60D is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney.
Recommended developers are ZP-4B dry powder, SKD-S2 or ZP-9F solvent-based or ZP-5B water-based.
Benefits
Improve indication detection
- Makes indications stand out more by easily washing excess penetrant off with water
- Reduces background fluorescence, even on rough surfaces
Maximize application versatility
- Ideal for an extensive variety of part types due to Level 2 sensitivity
- Universal specification conformance and fast, even surface wetting
Affordable performance
- Drives value at each step of the inspection process
- Quickly apply penetrant with high surface wetting
- Easily wash off with water
- Use less penetrant over time because of lower drag-out and slower evaporation
Maximize operator comfort and safety
- Promotes better inspection quality by providing the operator with a more comfortable work environment
- Reduces discomfort from strong odors
- Exceeds all EHS requirements
Features
- Bright, high-contrast indications
- Good removability
- Excellent rough surface washability
- Water washable
- Level 2 medium sensitivity
- High flash point
- Very low odor
- Better surface wetting
- Alloy compatibility
- High thermal resistance
- High UV stability
- Very low toxicity
- Low volatility
- Optimized capillary action
- QPL SAE AMS 2644 Qualified Product List
- Approved for use by Pratt & Whitney
Specifications
- AECL
- AMS 2644
- ASME BPVC
- ASTM E1417
- ASTM E165
- Boeing BAC 5423 PSD 6-46 or 8-4
- Boeing PS-21202
- GE P3TF2
- GE P50YP107
- Honeywell EMS 52309
- ISO 3452-2
- MIL-STD-2132
- MIL-STD-271
- NAVSEA T9074-AS-GIB-010/271
- Pratt & Whitney PMC 4351
- QPL SAE AMS 2644
Applications
Defect location: open to surface
Ideal for:
- Castings
- Forgings
- Extrusions
- Welds
- Machined components
- Rough surfaces
- Aerospace alloys
- Aluminum
- Steel
- Nickel
- Titanium
Defect examples:
- Cracks
- Laps
- Seams
- Cold shuts
- Delamination
- Porosity
Use Recommendations
NDT Method: Fluorescent Penetrant Testing
Type: Type 1
Methods: Method A or Method C
Sensitivity Level: Level 2, medium sensitivity
Required Equipment: UV light source, like the EV6000 or EV6500
Temperature Range: 40 to 125°F / 4 to 52°C
