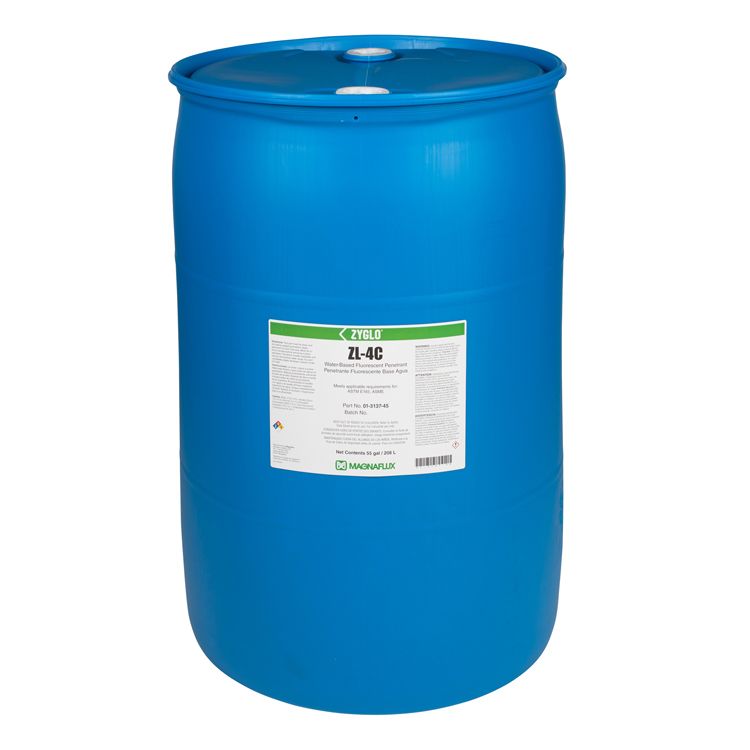

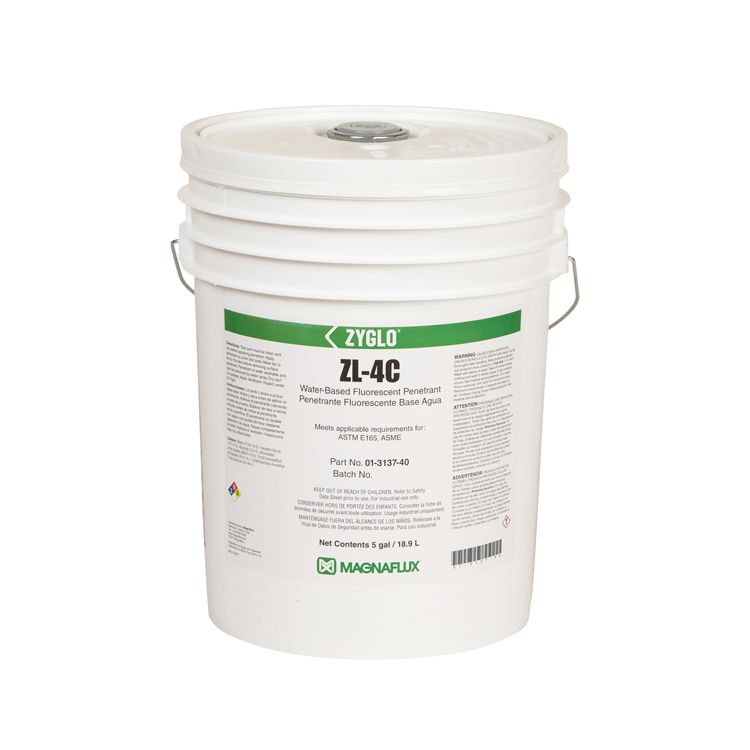

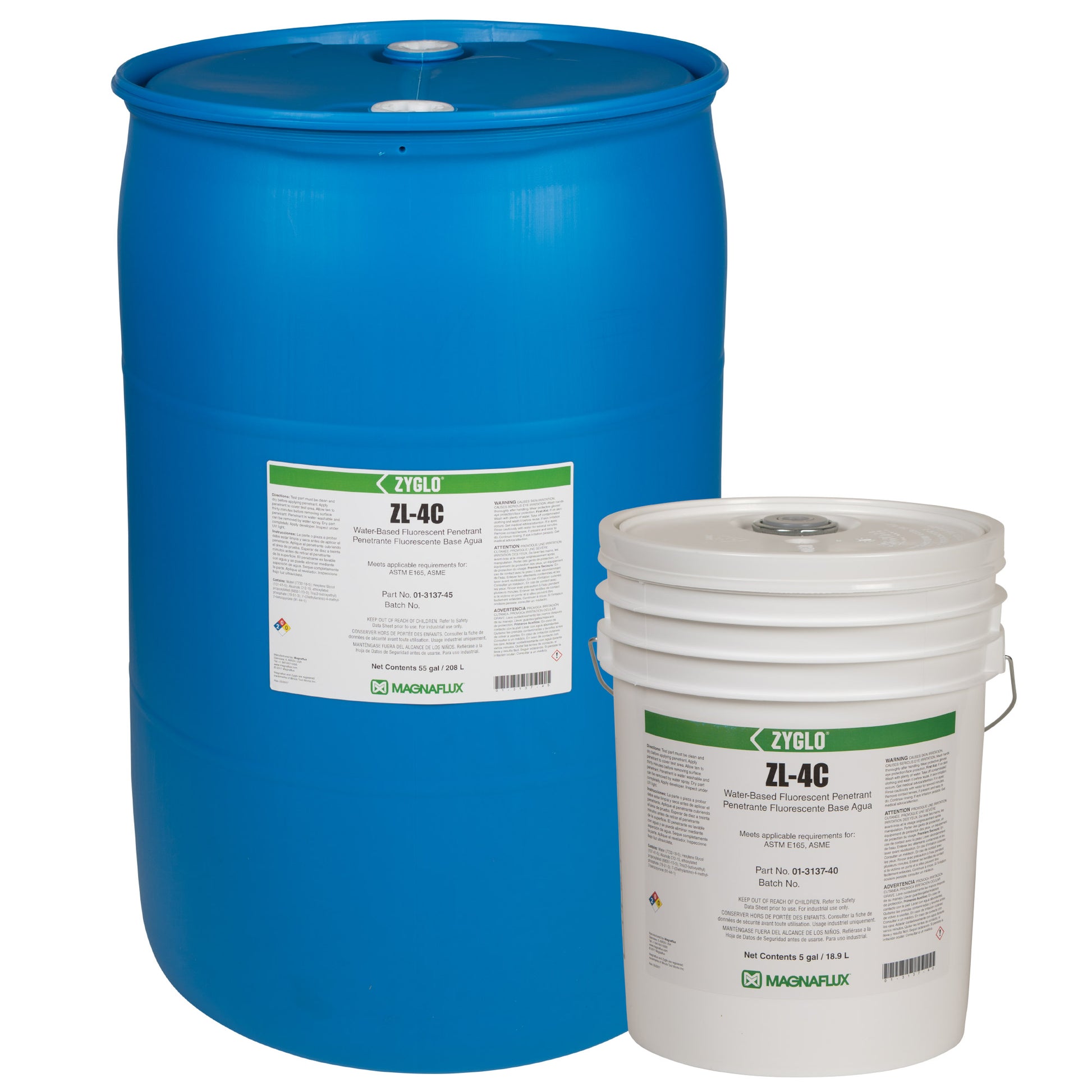

Developed for testing materials that can be affected by petroleum-based penetrants, ZL-4C water-based fluorescent penetrant contains no petroleum derivatives and is harmless to materials that can be attacked by petroleum-based solvents, such as plastics. It is also safe for use on ceramics, and it can be used as a leak detector. It is always recommended that the inspection material is tested for compatibility with ZL-4C prior to use.
ZL-4C can be diluted with water to decrease its viscosity to enable easier application. ZL-4C does not contain a corrosion inhibitor as the materials it is designed to test are not normally susceptible to corrosion. ZP-4D powder developer is recommended for use with ZL-4C penetrant, because liquid developers may wash penetrant out of open surface flaws in the non-metallic materials being tested.
Benefits
- Water-based for specialty applications
- Safe for use on ceramics
- Can be used for leak detection
- Can be diluted with water
Specifications
- ASME
- ASTM E165
Applications
Defect location: open to surface
Ideal for:
- Plastic components
- Ceramic components
- Leak detection
Defect examples:
- Cracks
- Leaks
Use Recommendations
NDT Method: Fluorescent Penetrant Testing
Required Equipment: UV light source
Temperature Range: 40 to 125°F / 4 to 52°C
