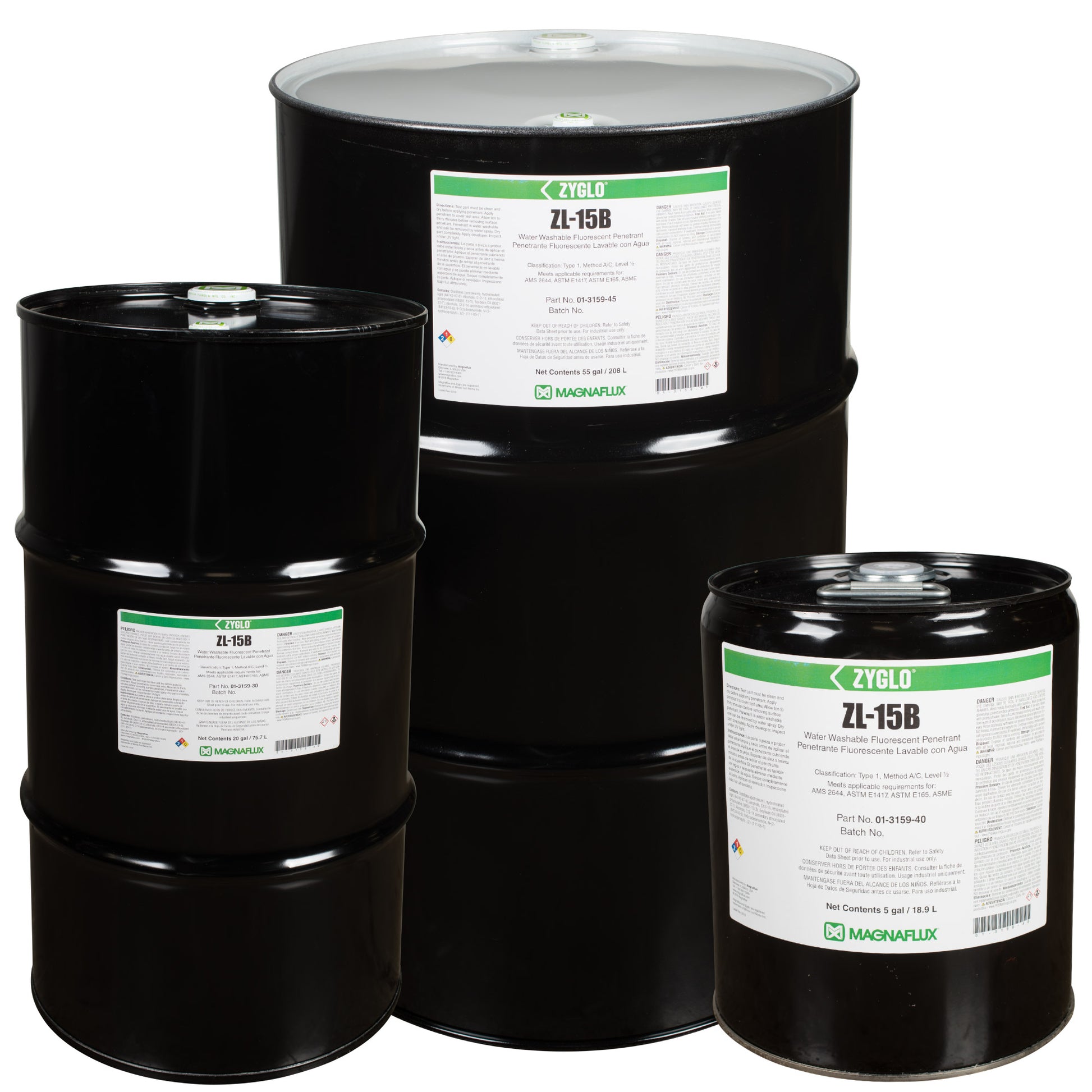

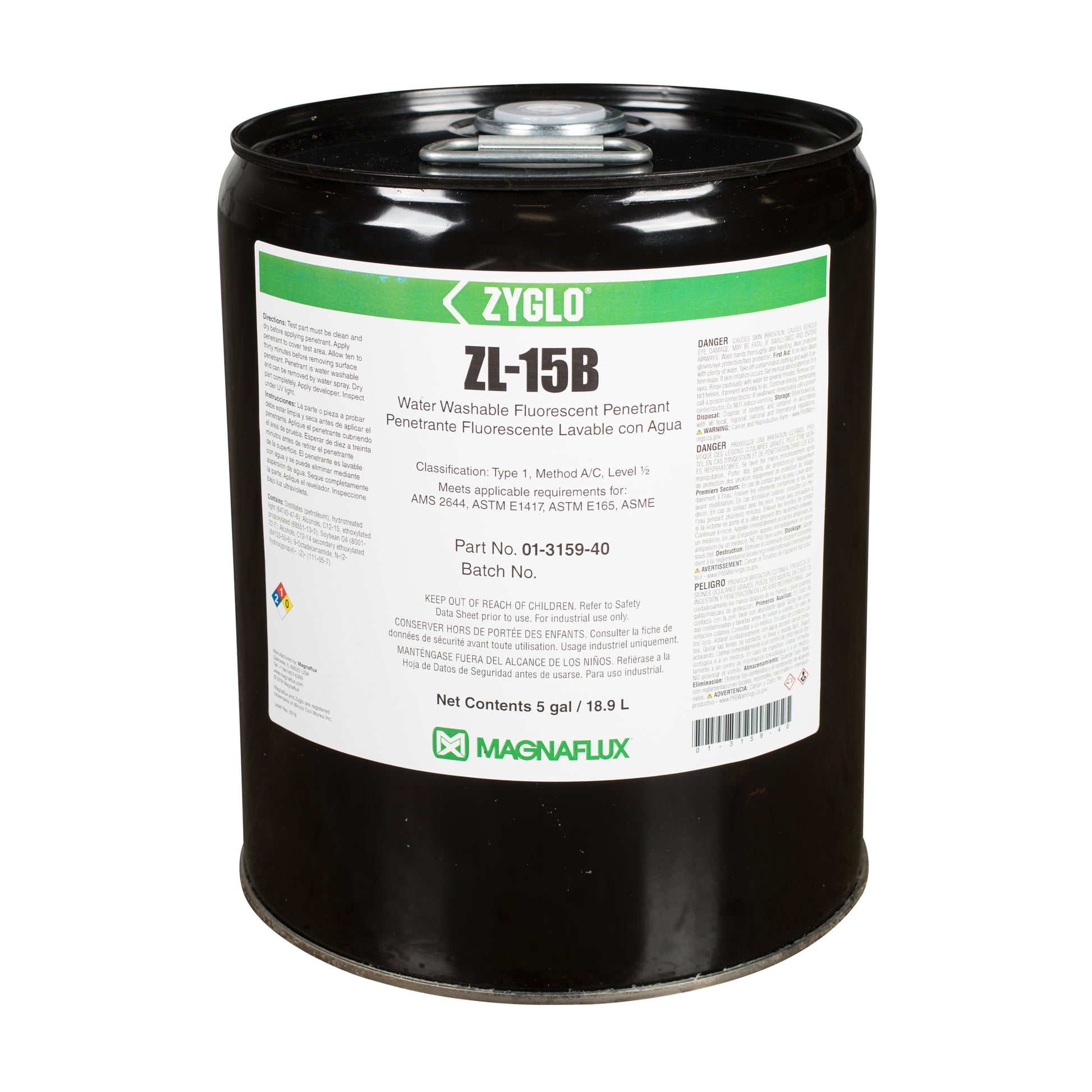

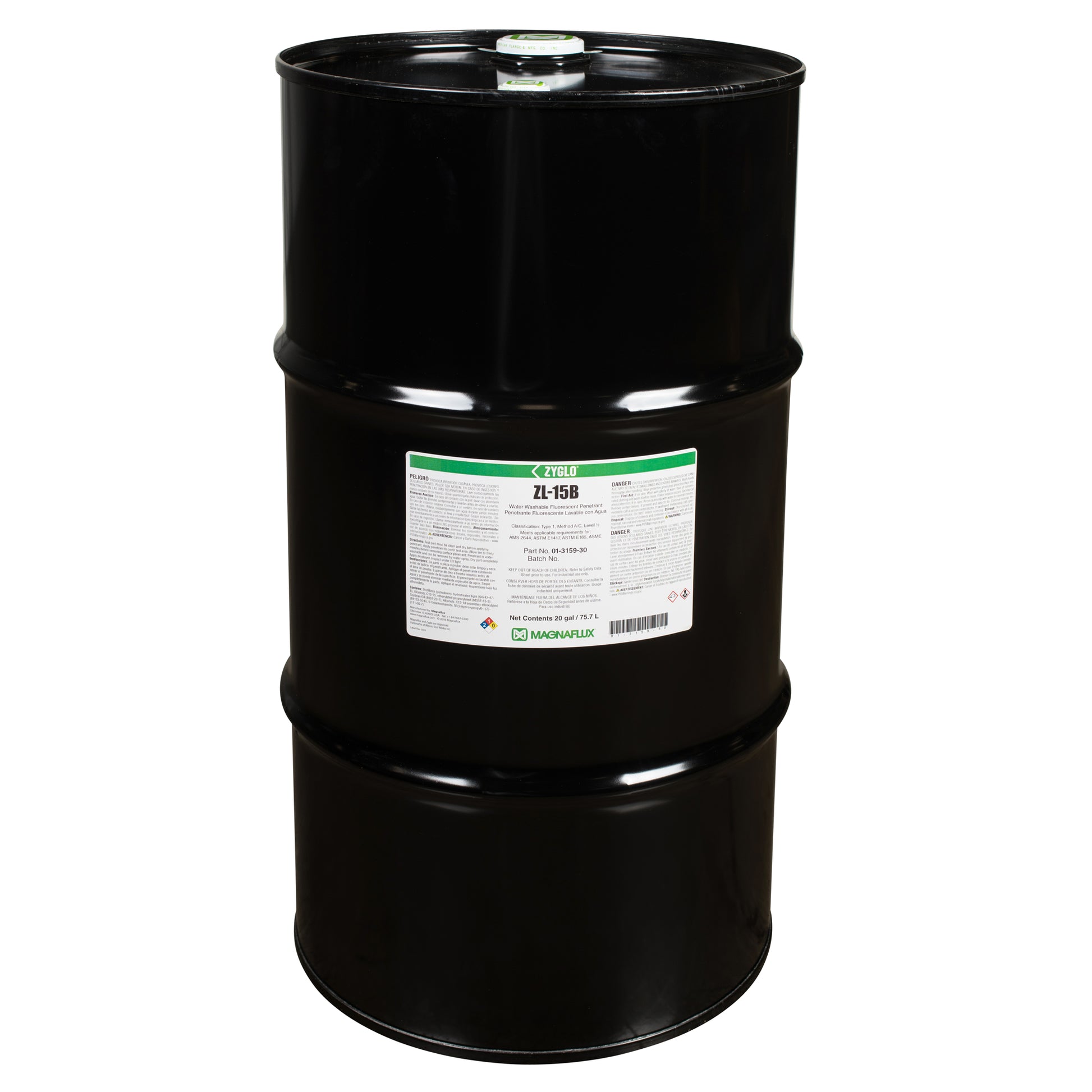

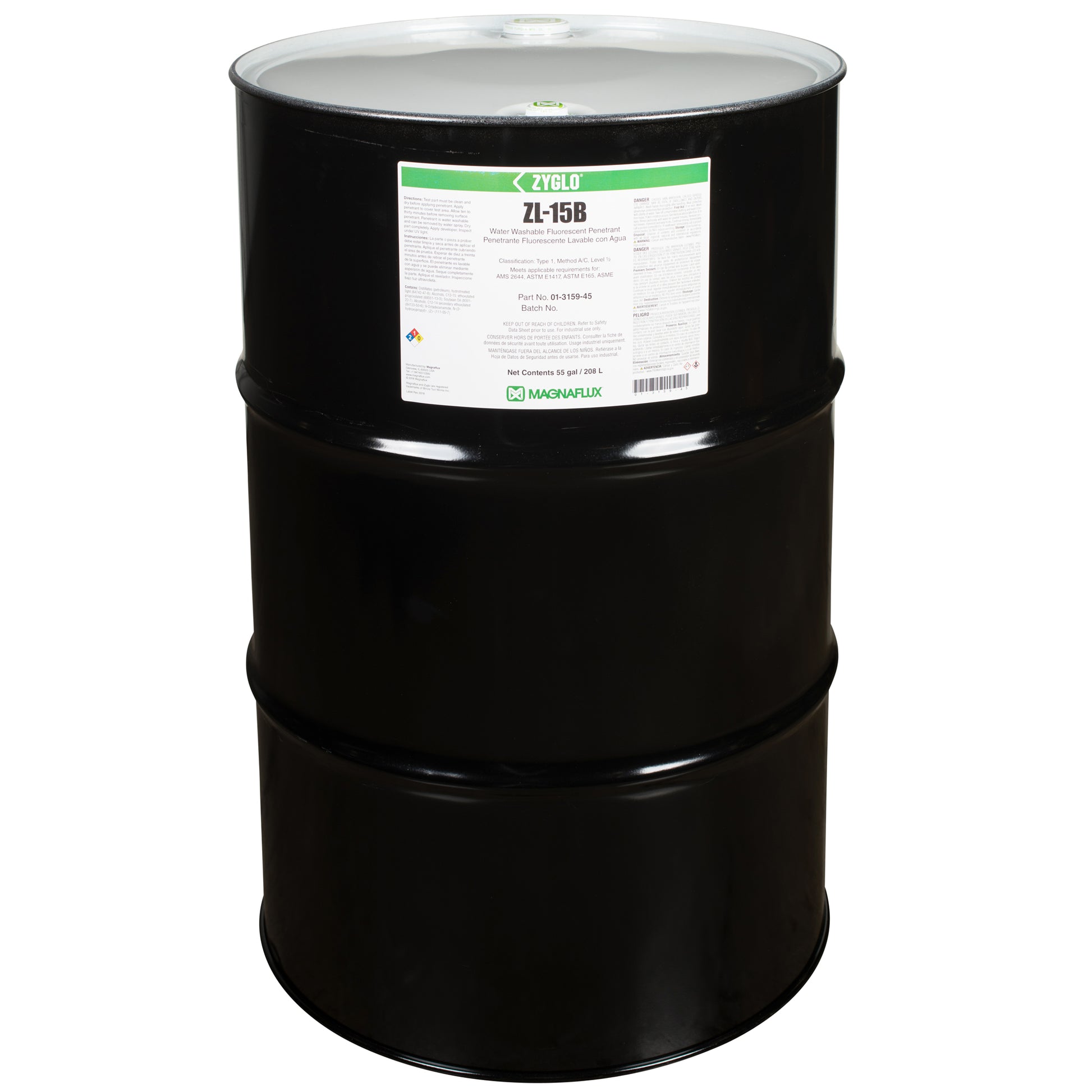

ZL-15B water washable penetrant is a low-sensitivity penetrant that features excellent washability. It is used to find open surface flaws such as cracks and porosity in seams, laps, cold shuts, and laminations on castings, forgings, extrusions, and parts with rough surfaces.
It can be developed with ZP-4D dry powder developer, with ZP-5B water suspendable developer in an agitated tank or with ZP-9F non-aqueous developer. With a UV-A light source, like the EV6000, indications will appear as a bright green-yellow fluorescence.
ZL-15B is listed on the QPL SAE AMS 2644 Qualified Product List.
Features
- Excellent washability
- QPL approved
Product Properties
| Penetrant Type | Type 1 |
| Fluorescent Penetrant Sensitivity | Level 1/2 - Very Low Sensitivity |
| Penetrant Methods | Method A, Method C |
| Removal Type | Water Washable |
| Required Equipment | UV light source |
Applications
Ideal Application: Castings, Cold shuts, Forgings, Laminations, Laps, Rough surface finish, Seams
Defect Examples: Cold shuts, Cracks, Delamination, Porosity, Seams
Compliance
Standards: AECL, AMS 2644, ASME, ASTM E1417, Boeing BAC 5423 PSD 6-46 or 8-4, Boeing PS-21202, NAVSEA T9074-AS-GIB-010/271, QPL SAE AMS 2644
