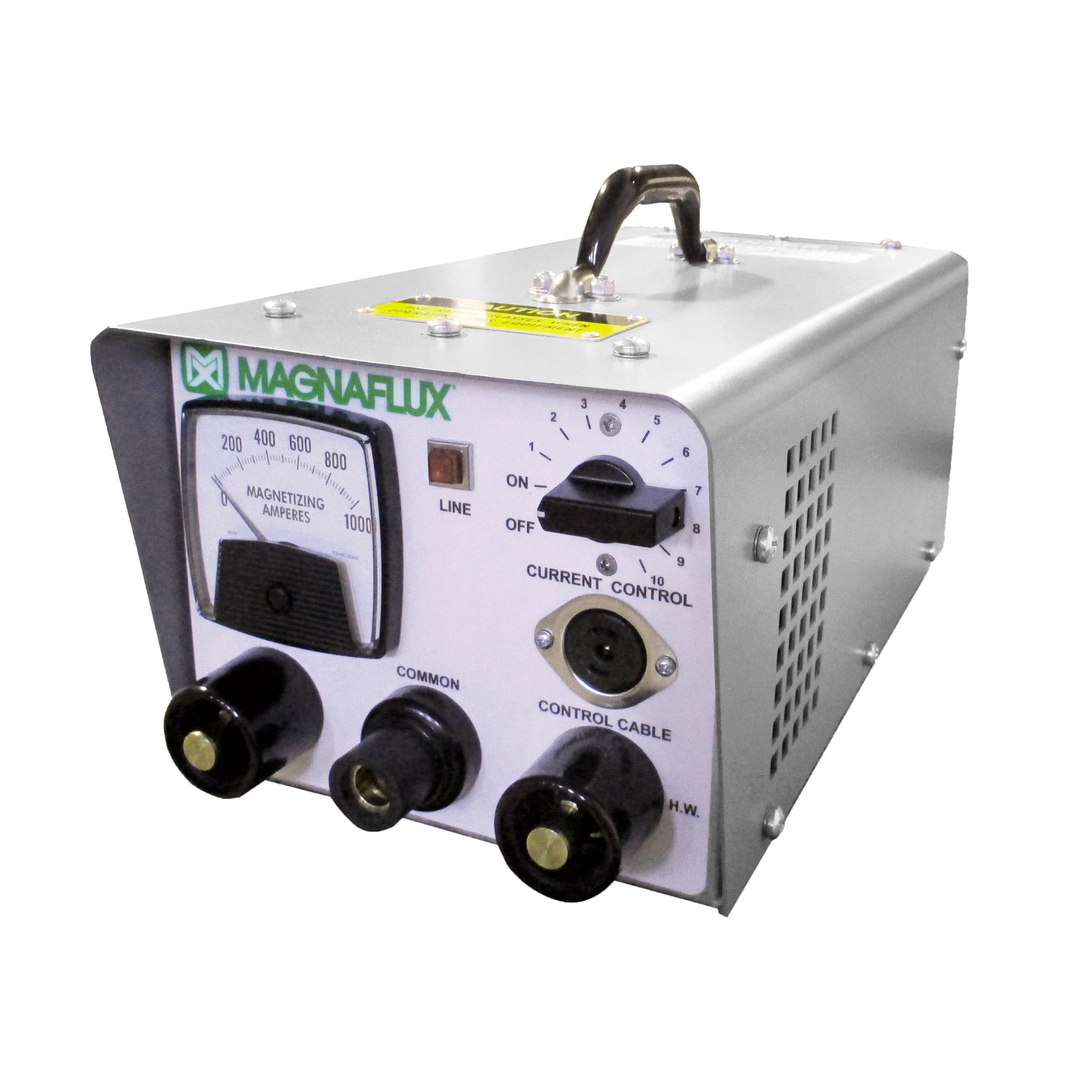

The Magnaflux P-Series is an extremely compact, lightweight portable magnetizing unit designed for use in a wide range of magnetic particle inspection applications that require only moderate power to perform. Perfect for in-service inspections demanding maximum portability, the P-Series is built tough to take job-site abuse and offers many of the features and convenience of our larger units. The current control potentiometer of P-Series P-70 and P-1500 units provides infinitely variable magnetizing and demagnetizing current control. A power transformer, supported by fan cooled silicon diodes, transforms the high voltage, low amperage line input to low voltage, high amperage half-wave D.C. for magnetizing. Low voltage, high amperage A.C. is also provided for magnetizing and demagnetizing.
P Series Features:
- Locate surface discontinuities using AC current. Switch cable connections to halfwave DC (HWDC)to locate near surface defects
- Locate discontinuities in any direction using prods, central conductor or coil wrap
- Infinitely variable current control
- Demagnetize parts in AC mode by slowly turning current dial to zero
- Built-in automatic-reset circuit breaker
- May be used as the main power source for the Mag Kit modular bench inspection system
- Comes standard with 15 ft / 4.5 m remote control cable
Specifications:
- Length: 22" (55.9 cm)
- Width: 9.5" (24.1 cm)
- Height: 9.5" (24.1 cm)
- Maximum output: 1500 amps, AC or HWDC
- Current input single phase: 230 VAC, 50/60 hz , 460 VAC, 50/60 hz
- Line current: 42 amps @ 230 VAC; 21 amps @ 460 VAC
- Maximum duty cycle: 2 minutes ON 2 minutes OFF
- Unit Weight: 93 lbs (42.2 kg)
