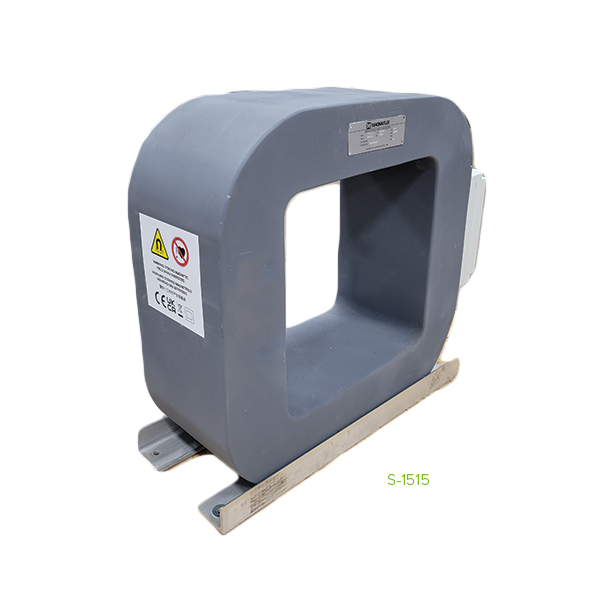

S-1515 Demagnetizing Coil
The Magnaflux S-1515 Demagnetization Coil is a compact tabletop unit designed to be conveniently integrated into existing mag particle inspection systems. Oil and waterproof by virtue of its plastic-impregnated glass coating, the S-1515 can be flush mounted to the work surface with supplied angle supports to facilitate easy part insertion by the operator.
TYPICAL APPLICATIONS:
STANDARD FEATURES
GENERAL SPECIFICATIONS:
The Magnaflux S-1515 Demagnetization Coil is a compact tabletop unit designed to be conveniently integrated into existing mag particle inspection systems. Oil and waterproof by virtue of its plastic-impregnated glass coating, the S-1515 can be flush mounted to the work surface with supplied angle supports to facilitate easy part insertion by the operator.
TYPICAL APPLICATIONS:
- Demagnetizing parts that have been subjected to Magnavis and Magnaglo magnetic particle inspection
- Removing residual magnetism in parts intended for use near magnetic instrumentation
- Demagnetizing parts with bearing or journal surfaces
- Demagnetizing parts after contact with magnetic chucks or lifting magnets
STANDARD FEATURES
- 8,500 Amp Turns
- Inside dimensions: 15 x 15 in / 39 x 39 cm
GENERAL SPECIFICATIONS:
- Inside dimensions: 15 x 15 in / 39 x 39 cm
- Size: 26.5 x 9.5 x 26.5 in / 67.3 x 24.1 x 67.3 cm
- Weight: 590 lbs / 267.6 kg
- Available Voltages: 460 V
- Available Frequencies: 60 hertz, single phase power
