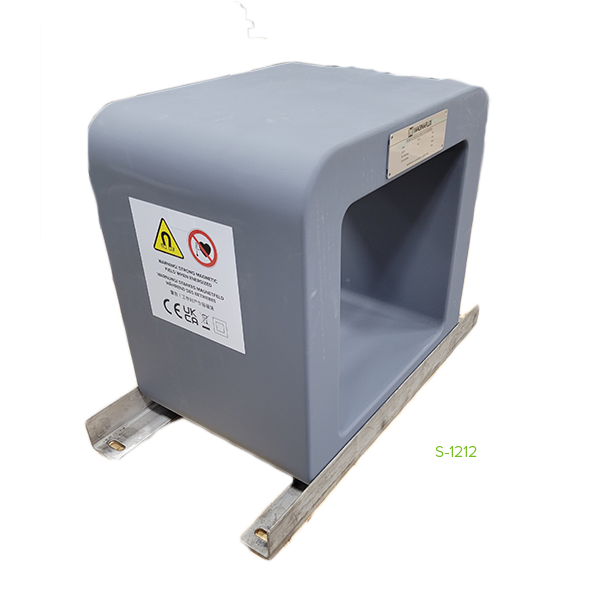

S-1212 Demagnetizing Coil
The Magnaflux S-1212 Demagnetization Coil is a compact tabletop unit designed to be conveniently integrated into existing mag particle inspection systems. Oil and waterproof by virtue of its plastic-impregnated glass coating, the S-1212 can be flush mounted to the work surface with supplied angle supports to facilitate easy part insertion by the operator.
TYPICAL APPLICATIONS:
STANDARD FEATURES
GENERAL SPECIFICATIONS:
The Magnaflux S-1212 Demagnetization Coil is a compact tabletop unit designed to be conveniently integrated into existing mag particle inspection systems. Oil and waterproof by virtue of its plastic-impregnated glass coating, the S-1212 can be flush mounted to the work surface with supplied angle supports to facilitate easy part insertion by the operator.
TYPICAL APPLICATIONS:
- Demagnetizing parts that have been subjected to Magnavis and Magnaglo magnetic particle inspection
- Removing residual magnetism in parts intended for use near magnetic instrumentation
- Demagnetizing parts with bearing or journal surfaces
- Demagnetizing parts after contact with magnetic chucks or lifting magnets
STANDARD FEATURES
- 7500 Amp Turns
- 12" wide x 12" high window (30.5cm x 30.5cm)
GENERAL SPECIFICATIONS:
- Elec. Requirements - 230V - 30 amp / 460V - 14 amp
- Dimensions: 24"L x 11.8"W x 24"H (61cm x 30cm x 61cm)
- Opening Size - 2” x 12” (30.5cm x 30.5cm)
- Shipping Weight - 285 lb. (129.3kg)
